Type 3131-B

~ 51 mm

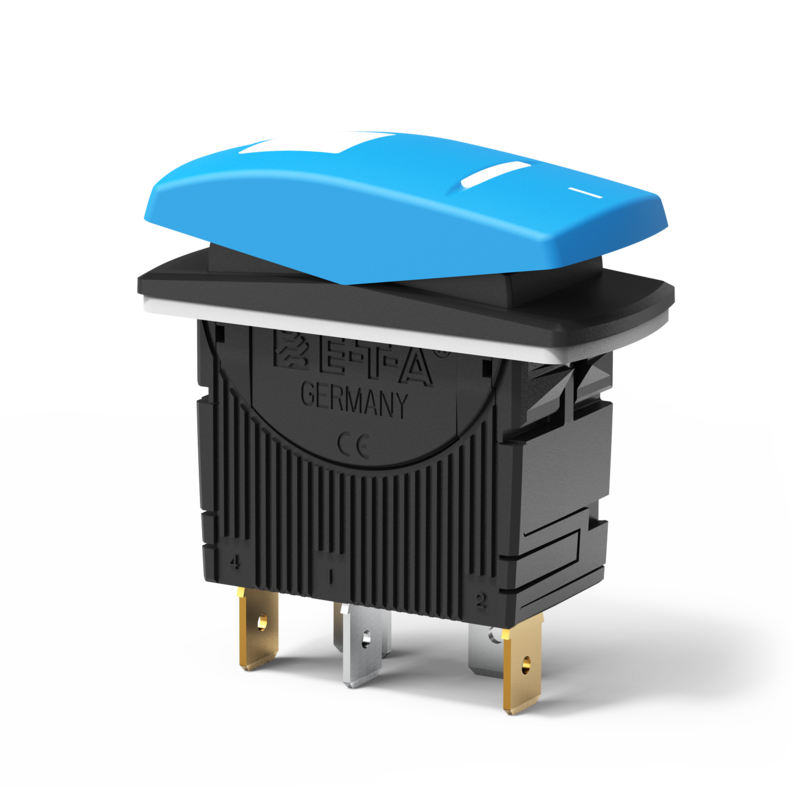

Typ 3131 von E-T-A: Einpoliger Dreistellungsschalter mit Schalt- oder Tastfunktion.

Description

Single pole three-position switch with latching or momentary switch functions. Featuring a soft-touch contoured rocker actuator with optional illumination. The 3131 ist sealed to provide IP66 rated front of panel water splash protection.

Technical Data

Voltage rating
  • DC 32 V
Current ratings from 20A until 20 A
Number of poles single pole
Mounting method flange
Terminal design blade terminals
Actuation rocker
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination with illumination
without illumination
Typical life 30,000 operations at 1 x IN, inductive
Certificates UL 1500 Ignition Protected

Accessories

Order number Description
X3131

actuator for type 3131 with various marking symbols

Y30879001

mounting frame side piece

Y30879101

mounting frame centre piece

Applications

  • Lighting technology
  • Watercraft & Vehicles
