Type 3120-N

~ 53 mm

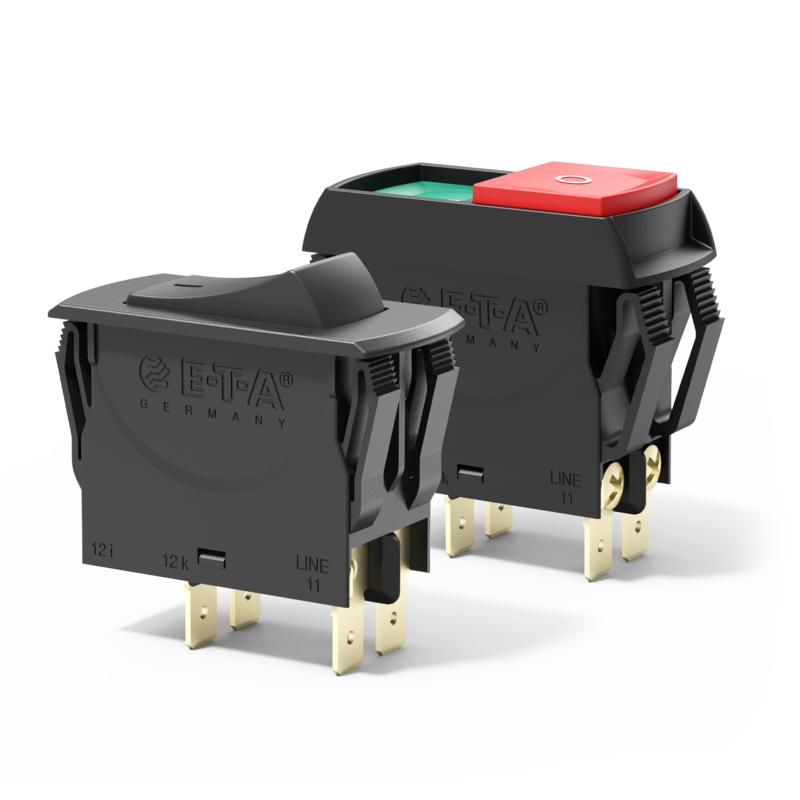

Typ 3120-N von E-T-A: Der thermische Kombi-Schutzschalter Typ 3120-N...-....T1-...

Description

The 3120-N...-...T1-... thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal.
Type 3120-N...-...T1-... is ideally suited for overload protection of motors, pumps, transformers and cables. After tripping, it can reliably, easily and quickly be reset. The positively trip-free mechanism ensures reliable disconnection of the circuit even with the actuator blocked.

Type 3120-N is also available with thermal-magnetic trip: Typ 3120-N...-...M1-...

Your benefits:

Maximum equipment availability is ensured by overload protection perfectly matched with the loads (prevention of nuisance tripping) and quick resettability
Reduced mounting and wiring time
Space-saving design
Reduced disposition and storage costs
Increased overall reliability

Type 3120-N is also available as a switch in accordance IEC/EN 61058 (see data sheet switch only) and with X3120 Power Entry Module.

Technical Data

Voltage rating	AC 240 V, DC 50 V AC 415 V upon request
Current ratings	from 0.1 A up to 20 A (up to 30 A to special order, single pole only)
Number of poles	double pole single pole
Mounting method	flange
Terminal design	blade terminals screw terminals
Actuation	push button rocker
Water splash protection	with water splash protection without water splash protection
Illumination	with illumination without illumination
Typical life	single pole AC 240 V: 0,1...20 A 30 000 operations at 1 x I_N, inductive DC 50 V: 0,1...4 A 30 000 operations at 1 x I_N, inductive 4,5...16 A 30 000 operations at 1 x I_N, resistive DC 28 V: 0,1...20 A 30 000 operations at 1 x I_N, inductive double pole AC 240 V: 0,1...16 A 50 000 operations at 1 x I_N, inductive 17...20 A 30 000 operations at 1 x I_N, inductive DC 50 V: 0,1...16 A 50 000 operations at 1 x I_N, inductive 17...20 A 10 000 operations at 1 x I_N, inductive
Interrupting capacity I_cn	(IEC/EN 60934) 1, 2-pole: I_N 0,1 ... 2 A, U_N AC 240 V / DC 50 V, I_cn 10 x I_N 1-pole: I_N 2,5 ... 10 A, U_N DC 50 V, I_cn 50 A 1-pole: I_N 2,5 ... 20 A, U_N AC 240 V / DC 28 V, I_cn 200 A 2-pole: I_N 2,5 ... 20 A, U_N DC 50 V, I_cn 250 A 2-pole: I_N 2,5 ... 20 A, U_N AC 240 V / DC 28 V, I_cn 300 A
Certificates	VDE, UL, CSA, CCC, KC

Accessories

Order number	Description
Y30386201	terminal adapter
Y30427501	Cover for terminal area (IP 20)
Y30367502	spacer for -F3/N3... panel thickness < 4 mm
Y30367601	spacer for -F5/N5...
Y31214001	plug-in connector
