1620

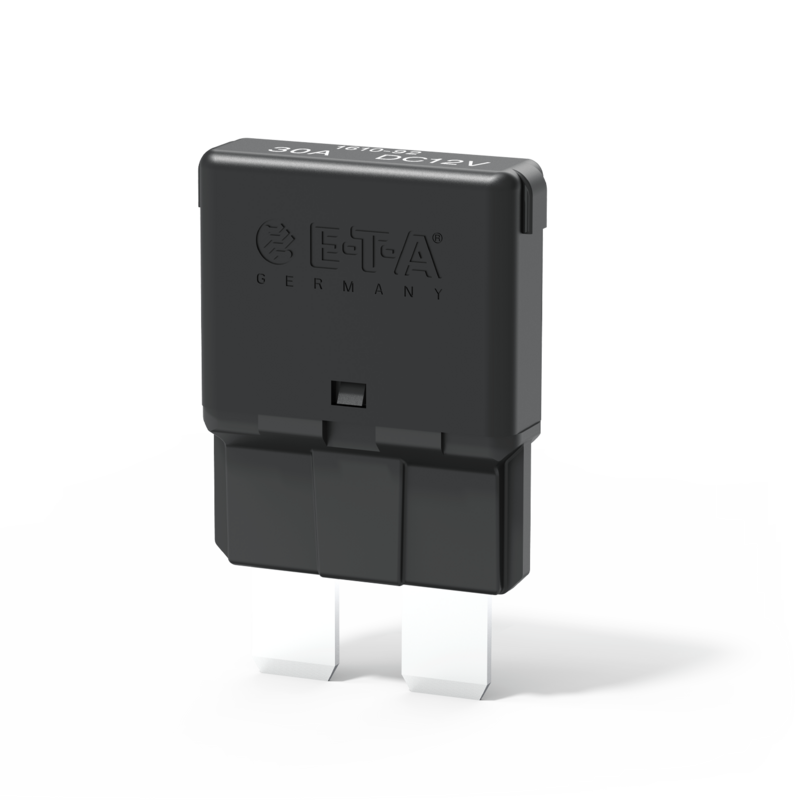

Single pole, thermal miniaturised circuit breaker designed for automotive applications
Type 1610-92
~ 30 mm
Description
Miniaturised single pole autoreset cycling trip free thermal circuit breaker designed for automotive fuse block installation.
Extends the benefits of circuit breaker performance and convenience to applications which are cost critical. Standard trip curve to ISO 10924.
Version 1616 is available especially for the automotive industry (current ratings correspond to those of blade fuses). Fast trip curve to ISO 10924 for direct replacement of automotive fuses.
Technical Data
| Voltage rating |
|
|---|---|
| Current ratings |
from 5 A up to 30A |
| Number of poles | single pole |
| Mounting method | socket |
| Terminal design | blade terminals |
| Actuation | without actuation |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination | without illumination |
| Typical life | 300 operations at <= 50 A |
| Interrupting capacity Icn |
>= 3 break operations at 150 A, or >= 1 break operation at 2,000 A |
| Certificates | UL 1500 |
Accessories
| Order number | Description | |
|---|---|---|
| 12-P10/-J20/-A10 |
sockets |
|
| X21058801-04 |
Connector bus links -P10 01 = 1.5 mm2 brown
02 = 2.5 mm2 black
03 = 2.5 mm2 red
04 = 2.5 mm2 blue |
|
| X21115701/02 |
busbar for mounting socket 01 = with terminal
02 = without terminal |
Applications
- Automobiles
- Commercial Vehicles
- Lighting technology
- Watercraft & Vehicles
Downloads
Datasheet & Explanations
- Data sheet 242.9 KB
