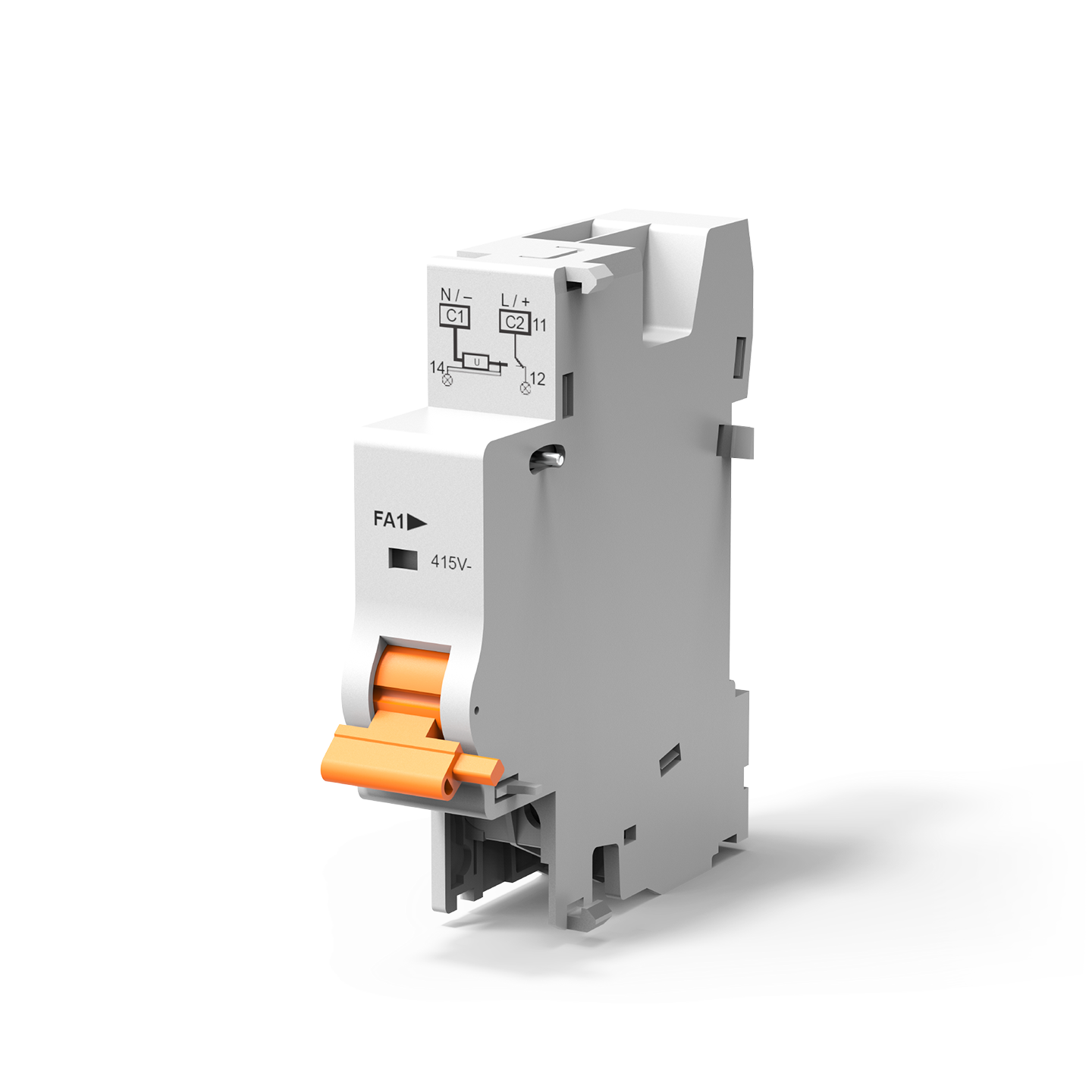

Type X4230-FA

81 mm
18 mm

Description

Add-on module for the 4230-T circuit breaker. The operating current breaker is designed for remote disconnection and for signalling whether the circuit breaker has tripped electrically or was switched off manually.

Technical Data

Nennspannung

AC 240…415 V; DC 24…130 V
Nennstrom 1…6A
Polzahl single pole
Montage rail mounting
Anschlüsse screw terminals
Betätigung toggle/baton
Hilfskontakte with auxiliary contacts
Spritzwasserschutz without water splash protection
Beleuchtung without illumination
Lebensdauer 20.000
Schaltvermögen Icn

Applications

  • Automation
  • Chemical, Oil & Gas
  • Mechanical engineering
  • Telecom & Datacom

Downloads

Datasheet & Explanations

Brochures | 2
