3-phase switch mode power supply units
Applications

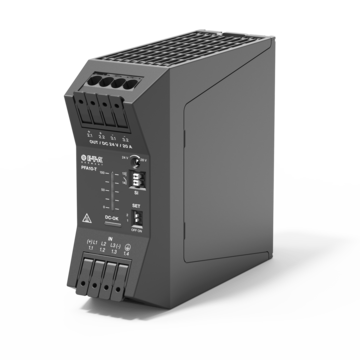

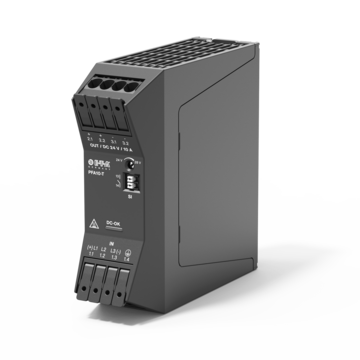

The PFA10-T primary pulsed switch mode power supply units are specifically developed for use in demanding automation and mechanical engineering applications. Thanks to their compact design, they enable space-saving integration in control cabinets with limited installation space - ideal for modern, compact system concepts.
Possible areas of application are:
- Mechanical and plant engineering
- Industrial automation
- Vehicle production
Technology
Advanced intelligent control systems, robotics and automated production lines take industrial productivity to a new level. A stable and continuous power supply is the basic requirement for machines to work efficiently. Modern systems are integrating more and more functions with only limited space available - this increases the demands on the compactness, user-friendliness and performance of power supply solutions. E-T-A provides the answer: compact, simple systems with maximum efficiency, developed for maximum availability in industrial applications.
For maximum user-friendliness, the housing is equipped with 25° inclined terminals. This allows tool-free wiring and facilitates both initial installation and quick replacement in the event of maintenance. Even under difficult installation conditions.
The integrated three-phase AC input offers increased flexibility and can optionally be operated with DC voltage. This makes the device suitable for a wide range of industrial power supply architectures.
Either DC 24 V or DC 48 V are available at the output. With an efficiency of up to 97.1 %, the power supply unit is extremely energy-efficient. It provides a continuous output of up to 960 W and a 150 % power reserve for up to 7.5 seconds for short-term load peaks. This reliably covers high inrush currents of inductive or capacitive loads. Whether in production automation, robotics or mechanical engineering, the PFA10-T fulfils all requirements of a modern, powerful and reliable power supply in dynamic industrial environments.
Your benefits
- Minimum space requirement with maximum function
- Ideal for limited installation space, control cabinet optimisation and modular machine concepts
- Intuitive handling - from installation to commissioning
- Time-saving thanks to unambiguous terminal connections, intuitive handling and a clear design
- Optimum energy utilisation and high availability
- Reduced energy losses, increased system performance and sustainably reduced operating costs
