Type Flexible Power-D-Module S700

19 Zoll (482,6 mm)

Description

Data sheet

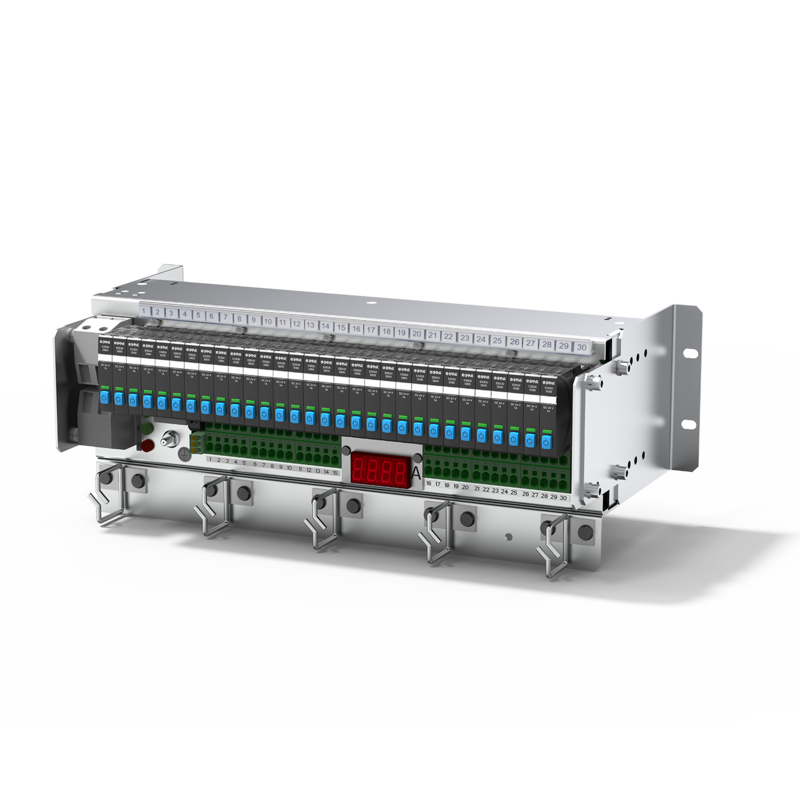

The flexible Power-D-Module S700 is a modular DC system, specifically adapted to the system requirements in the process-, chemical-, pharmaceutical or oil and gas industry. It is possible to protect up to 30 loads in DC 24 V applications via pluggable ESS30 electronic circuit protector.

The supply is optionally provided redundantly via integral decoupling diodes. Group signalisation via quiescent current actuated relay or a digital total current display are available in the configuration options.

Technical Data

Mounting method mounting brackets
racks
Circuit breaker type electronics
thermal-magnetic
Dimensions height 3U (133.35 mm)
height 4U (177.8mm)
width 19 (482.6 mm)
Max. rated voltage DC +24 V
Number of channels 1 x 30 non-redundant
2 x 15 redundant
For circuit breaker type ESS30
ESX10
Supply non-redundant
redundant
Supply max. current rating 80 A
Supply terminal type 25 mm²
Screw terminals
Max. current rating of loads 10
Terminal type of loads 4 mm²
Spring-loaded terminals
Signalling Break contacts connected in parallel
Terminal type of auxiliary contacts 1.5 mm²
spring-loaded terminals
Operating temperature range 0 … +50 °C

Applications

  • Automation
  • Chemical, Oil & Gas
  • Pharmaceutical & Food
  • Power Engineering DC 24 V
  • Renewable energies
